gridpack::network::BaseNetwork< _bus, _branch > Class Template Reference

#include <base_network.hpp>

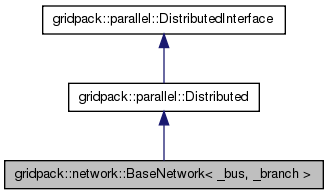

Inheritance diagram for gridpack::network::BaseNetwork< _bus, _branch >:

[legend]

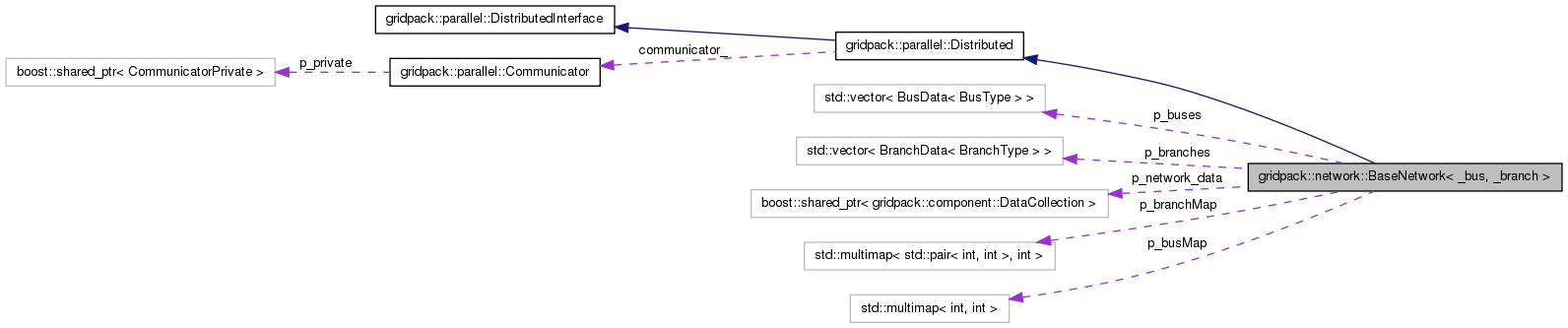

Collaboration diagram for gridpack::network::BaseNetwork< _bus, _branch >:

[legend]

List of all members.

Public Types
typedef _bus	BusType
typedef _branch	BranchType
typedef boost::shared_ptr< _bus >	BusPtr
typedef boost::shared_ptr < _branch >	BranchPtr
Public Member Functions
	BaseNetwork (const parallel::Communicator &comm)
virtual	~BaseNetwork (void)
void	addBus (int idx)
void	addBranch (int idx1, int idx2)
int	numBuses (void)
int	totalBuses (void)
int	numBranches (void)
int	totalBranches (void)
void	setReferenceBus (int idx)
int	getReferenceBus (void) const
bool	setOriginalBusIndex (int idx, int o_idx)
bool	setGlobalBusIndex (int idx, int g_idx)
bool	setGlobalBranchIndex (int idx, int g_idx)
bool	setOriginalBusIndex1 (int idx, int b_idx)
bool	setOriginalBusIndex2 (int idx, int b_idx)
bool	setGlobalBusIndex1 (int idx, int b_idx)
bool	setGlobalBusIndex2 (int idx, int b_idx)
bool	setLocalBusIndex1 (int idx, int b_idx)
bool	setLocalBusIndex2 (int idx, int b_idx)
bool	setActiveBus (int idx, bool flag)
bool	setActiveBranch (int idx, bool flag)
bool	clearBranchNeighbors (int idx)
bool	addBranchNeighbor (int idx, int br_idx)
bool	getActiveBus (int idx)
int	getOriginalBusIndex (int idx)
int	getGlobalBusIndex (int idx)
BusPtr	getBus (int idx)
bool	getActiveBranch (int idx)
int	getGlobalBranchIndex (int idx)
BranchPtr	getBranch (int idx)
void	getOriginalBranchEndpoints (int idx, int *idx1, int *idx2)
boost::shared_ptr < component::DataCollection >	getBusData (int idx)
boost::shared_ptr < component::DataCollection >	getBranchData (int idx)
std::vector< int >	getConnectedBranches (int idx) const
std::vector< int >	getConnectedBuses (int idx) const
void	getBranchEndpoints (int idx, int *bus1, int *bus2) const
void	assemble (void)
	Assemble local part of network.
void	partition (void)
void	clean (void)
template<class _new_bus , class _new_branch >
void	clone (boost::shared_ptr< gridpack::network::BaseNetwork< _new_bus, _new_branch > > &new_network)
void	resetGlobalIndices (bool flag)
void	clear (void)
void	allocXCBus (int size)
void	freeXCBus (void)
void	allocXCBusPointers (int size)
void	setXCBusBuffer (int idx, void *ptr)
void *	getXCBusBuffer (int idx)
void	allocXCBranch (int size)
void	freeXCBranch (void)
void *	getXCBranchBuffer (int idx)
void	allocXCBranchPointers (int size)
void	setXCBranchBuffer (int idx, void *ptr)
void	initBusUpdate (void)
void	updateBuses (void)
void	initBranchUpdate (void)
void	updateBranches (void)
void	writeGraph (const std::string &outname)
void	setMap (void)
std::vector< int >	getLocalBusIndices (int idx)
std::vector< int >	getLocalBranchIndices (int idx1, int idx2)
boost::shared_ptr < gridpack::component::DataCollection >	getNetworkData ()
void	broadcastNetworkData (int idx)
Protected Member Functions
	BaseNetwork (const BaseNetwork &old)

---

Detailed Description

template<class _bus, class _branch>
class gridpack::network::BaseNetwork< _bus, _branch >

class BaseNetwork: This is the base class for creating distributed networks. It is basically a container that supports the network topology, allows user-defined buses and branches to be added to the network and has containers that can be used to store parameters for input or output. BaseNetwork also implements ghost bus and ghost branch update for the network. The BaseNetwork class also contains the partitioner, although this is implemented using several additional classes to encapsulate the partitioner from the remainder of the network class.

---

Member Typedef Documentation

template<class _bus , class _branch >

typedef boost::shared_ptr<_branch> gridpack::network::BaseNetwork< _bus, _branch >::BranchPtr

template<class _bus , class _branch >

typedef _branch gridpack::network::BaseNetwork< _bus, _branch >::BranchType

template<class _bus , class _branch >

typedef boost::shared_ptr<_bus> gridpack::network::BaseNetwork< _bus, _branch >::BusPtr

template<class _bus , class _branch >

typedef _bus gridpack::network::BaseNetwork< _bus, _branch >::BusType

Type declarations that can be used external to the BaseNetwork class

---

Constructor & Destructor Documentation

template<class _bus , class _branch >

gridpack::network::BaseNetwork< _bus, _branch >::BaseNetwork

(

const parallel::Communicator &

comm

)

[explicit]

Default constructor.

template<class _bus , class _branch >

virtual gridpack::network::BaseNetwork< _bus, _branch >::~BaseNetwork

(

void

)

[virtual]

Default destructor.

template<class _bus , class _branch >

gridpack::network::BaseNetwork< _bus, _branch >::BaseNetwork

(

const BaseNetwork< _bus, _branch > &

old

)

[protected]

Protected copy constructor to avoid unwanted copies.

---

Member Function Documentation

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::addBranch	(	int	idx1,
		int	idx2
	)

Add a branch locally to the network. A branch is defined by buses at either end

Parameters:

	idx1	original bus index of bus 1
	idx2	original bus index of bus 2

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::addBranchNeighbor	(	int	idx,
		int	br_idx
	)

Add local index for a branch attached to bus at idx

Parameters:

	idx	local index of bus
	br_idx	local index of branch attached to bus

Returns:

false if no bus exists for idx

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::addBus

(

int

idx

)

Add a bus locally to the network

Parameters:

idx

original index of bus

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::allocXCBranch

(

int

size

)

Allocate buffers for exchanging data for ghost branches

Parameters:

size

size (in bytes) of buffer

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::allocXCBranchPointers

(

int

size

)

Allocate array of pointers to buffers for exchanging data for ghost branchs

Parameters:

size

size of buffers that will be assigned to pointers

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::allocXCBus

(

int

size

)

Allocate array of pointers to buffers for exchanging data for ghost buses

Parameters:

size

size (in bytes) of buffer

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::allocXCBusPointers

(

int

size

)

Allocate buffers for exchanging data for ghost buses

Parameters:

size

size of buffers that will be assigned to pointers

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::assemble

(

void

)

Assemble local part of network.

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::broadcastNetworkData

(

int

idx

)

Broadcast network data object from one processor to remaining processors on network communicator

Parameters:

rank

of processor that acts as root for broadcast

References gridpack::parallel::Distributed::communicator().

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::clean

(

void

)

Clean all ghost buses and branches from the system. This can be used before repartitioning the network. This operation also removes all exchange buffers, so these need to be reallocated after calling this method

References gridpack::network::BaseNetwork< _bus, _branch >::freeXCBranch(), and gridpack::network::BaseNetwork< _bus, _branch >::freeXCBus().

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::clear

(

void

)

Remove all buses and branches from the system.

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::clearBranchNeighbors

(

int

idx

)

Clear the list of neighbors for the bus at idx

Parameters:

idx

local index of bus

Returns:

false if no bus exists for idx

template<class _bus , class _branch >

template<class _new_bus , class _new_branch >

void gridpack::network::BaseNetwork< _bus, _branch >::clone

(

boost::shared_ptr< gridpack::network::BaseNetwork< _new_bus, _new_branch > > &

new_network

)

Copy network to new network. The component classes of the new network do not need to be the same as the component classes of the old network. This function can be used to create different types of networks that can be used to solve different problems. The new network is already partitioned so it is not necessary to call the partitioner.

Parameters:

new_network

a new network of a different type than the calling network

References gridpack::network::BaseNetwork< _bus, _branch >::getActiveBranch(), gridpack::network::BaseNetwork< _bus, _branch >::getActiveBus(), gridpack::network::BaseNetwork< _bus, _branch >::getBranchData(), gridpack::network::BaseNetwork< _bus, _branch >::getBranchEndpoints(), gridpack::network::BaseNetwork< _bus, _branch >::getBusData(), gridpack::network::BaseNetwork< _bus, _branch >::getConnectedBranches(), gridpack::network::BaseNetwork< _bus, _branch >::getGlobalBranchIndex(), gridpack::network::BaseNetwork< _bus, _branch >::getGlobalBusIndex(), gridpack::network::BaseNetwork< _bus, _branch >::getOriginalBranchEndpoints(), gridpack::network::BaseNetwork< _bus, _branch >::getOriginalBusIndex(), gridpack::network::BaseNetwork< _bus, _branch >::getReferenceBus(), gridpack::network::BaseNetwork< _bus, _branch >::numBranches(), and gridpack::network::BaseNetwork< _bus, _branch >::numBuses().

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::freeXCBranch

(

void

)

Free buffers for exchange of bus data

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::freeXCBus

(

void

)

Free buffers for exchange of bus data

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::getActiveBranch

(

int

idx

)

Get status of the branch (local or ghosted)

Parameters:

idx

local index of branch

Returns:

true if branch is locally held, false if it is ghosted

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::getActiveBus

(

int

idx

)

Get status of the bus (local or ghosted)

Parameters:

idx

local index of bus

Returns:

true if bus is locally held, false if it is ghosted

template<class _bus , class _branch >

BranchPtr gridpack::network::BaseNetwork< _bus, _branch >::getBranch

(

int

idx

)

Retrieve a pointer to an existing branch

Parameters:

idx

local index of requested branch

Returns:

a pointer to the requested branch

template<class _bus , class _branch >

boost::shared_ptr<component::DataCollection> gridpack::network::BaseNetwork< _bus, _branch >::getBranchData

(

int

idx

)

Retrieve a pointer to the DataCollection object associated with branch indexed by idx

Parameters:

idx

local index of requested branch

Returns:

a pointer to the requested branch data

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::getBranchEndpoints	(	int	idx,
		int *	bus1,
		int *	bus2
	)			const

Return indices of buses at either end of branch

Parameters:

	idx	local branch index
	bus1	local index of bus at one end of branch
	bus2	local index of bus at other end of branch

template<class _bus , class _branch >

BusPtr gridpack::network::BaseNetwork< _bus, _branch >::getBus

(

int

idx

)

Retrieve a pointer to an existing bus

Parameters:

idx

local index of requested bus

Returns:

a pointer to the requested bus.

template<class _bus , class _branch >

boost::shared_ptr<component::DataCollection> gridpack::network::BaseNetwork< _bus, _branch >::getBusData

(

int

idx

)

Retrieve a pointer to the DataCollection object associated with bus indexed by idx

Parameters:

idx

local index of requested bus

Returns:

a pointer to the requested bus data

template<class _bus , class _branch >

std::vector<int> gridpack::network::BaseNetwork< _bus, _branch >::getConnectedBranches

(

int

idx

)

const

Return list of branches connected to bus

Parameters:

idx

local bus index

Returns:

vector of local branch indices

template<class _bus , class _branch >

std::vector<int> gridpack::network::BaseNetwork< _bus, _branch >::getConnectedBuses

(

int

idx

)

const

Return list of buses connected to central bus via one branch

Parameters:

idx

local bus index

Returns:

vector of local bus indices

template<class _bus , class _branch >

int gridpack::network::BaseNetwork< _bus, _branch >::getGlobalBranchIndex

(

int

idx

)

Get global index of the branch

Parameters:

idx

local index of branch

Returns:

global index of branch

template<class _bus , class _branch >

int gridpack::network::BaseNetwork< _bus, _branch >::getGlobalBusIndex

(

int

idx

)

Get global index of the bus

Parameters:

idx

local index of bus

Returns:

global index of bus

template<class _bus , class _branch >

std::vector<int> gridpack::network::BaseNetwork< _bus, _branch >::getLocalBranchIndices	(	int	idx1,
		int	idx2
	)

Find the local indices given the original bus pair indices of a branch.

Parameters:

	idx1	original index of bus1
	idx2	original index of bus2

Returns:

set of local indices of branch. If vector is empty, no branch found

template<class _bus , class _branch >

std::vector<int> gridpack::network::BaseNetwork< _bus, _branch >::getLocalBusIndices

(

int

idx

)

Find the local indices given the original index of a bus. Ghost buses may show up more than once.

Parameters:

idx

original index of bus

Returns:

set of local indices of bus. If vector is empty, no buses found

template<class _bus , class _branch >

boost::shared_ptr<gridpack::component::DataCollection> gridpack::network::BaseNetwork< _bus, _branch >::getNetworkData

(

)

Return a boost pointer to the DataCollection object containing parameters that describe the network as a whole

Returns:

a pointer to network-level data collection object

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::getOriginalBranchEndpoints	(	int	idx,
		int *	idx1,
		int *	idx2
	)

Get original indices of the two buses at each end of a branch

Parameters:

	idx	local index of branch
	idx1	original index of "from" bus
	idx1	original index of "to" bus

template<class _bus , class _branch >

int gridpack::network::BaseNetwork< _bus, _branch >::getOriginalBusIndex

(

int

idx

)

Get original index of the bus

Parameters:

idx

local index of bus

Returns:

original index of bus

template<class _bus , class _branch >

int gridpack::network::BaseNetwork< _bus, _branch >::getReferenceBus

(

void

)

const

Return index of reference bus.

Returns:

local index of reference bus. If reference bus is not on this processor then return -1.

template<class _bus , class _branch >

void* gridpack::network::BaseNetwork< _bus, _branch >::getXCBranchBuffer

(

int

idx

)

Return a pointer to exchange buffer for bus

Parameters:

idx

local index of bus

Returns:

pointer to exchange buffer

template<class _bus , class _branch >

void* gridpack::network::BaseNetwork< _bus, _branch >::getXCBusBuffer

(

int

idx

)

Return a pointer to exchange buffer for bus

Parameters:

idx

local index of bus

Returns:

pointer to exchange buffer

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::initBranchUpdate

(

void

)

This function must be called before calling the update branch routine. It initializes data structures for the branch update

References gridpack::parallel::Distributed::communicator(), gridpack::network::BaseNetwork< _bus, _branch >::getActiveBranch(), gridpack::network::BaseNetwork< _bus, _branch >::getGlobalBranchIndex(), and gridpack::network::BaseNetwork< _bus, _branch >::numBranches().

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::initBusUpdate

(

void

)

This function must be called before calling the update bus routine. It initializes data structures for the bus update

References gridpack::parallel::Distributed::communicator(), gridpack::network::BaseNetwork< _bus, _branch >::getActiveBus(), gridpack::network::BaseNetwork< _bus, _branch >::getGlobalBusIndex(), and gridpack::network::BaseNetwork< _bus, _branch >::numBuses().

template<class _bus , class _branch >

int gridpack::network::BaseNetwork< _bus, _branch >::numBranches

(

void

)

Number of local branches (both active and inactive) on processor

Returns:

number of branches

template<class _bus , class _branch >

int gridpack::network::BaseNetwork< _bus, _branch >::numBuses

(

void

)

Number of local buses (both active and inactive) on processor

Returns:

number of buses

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::partition

(

void

)

Partition the network over the available processes

References gridpack::network::BaseNetwork< _bus, _branch >::addBranchNeighbor(), gridpack::network::BaseNetwork< _bus, _branch >::clearBranchNeighbors(), gridpack::parallel::Distributed::communicator(), gridpack::utility::CoarseTimer::createCategory(), gridpack::parallel::DistributedInterface::processor_rank(), gridpack::network::BaseNetwork< _bus, _branch >::setGlobalBusIndex1(), gridpack::network::BaseNetwork< _bus, _branch >::setGlobalBusIndex2(), gridpack::network::BaseNetwork< _bus, _branch >::setMap(), gridpack::utility::CoarseTimer::start(), and gridpack::utility::CoarseTimer::stop().

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::resetGlobalIndices

(

bool

flag

)

Reset global indices on buses and branches

Parameters:

flag

if true reset indices on all buses and branches. If false, assume that global indices have already been set on local buses and local branches and only assign indices to ghost buses and branches

References gridpack::hash_map::GlobalIndexHashMap::addPairs(), gridpack::parallel::Distributed::communicator(), gridpack::network::BaseNetwork< _bus, _branch >::getActiveBranch(), gridpack::network::BaseNetwork< _bus, _branch >::getActiveBus(), gridpack::network::BaseNetwork< _bus, _branch >::getGlobalBranchIndex(), gridpack::network::BaseNetwork< _bus, _branch >::getGlobalBusIndex(), gridpack::network::BaseNetwork< _bus, _branch >::getOriginalBranchEndpoints(), gridpack::network::BaseNetwork< _bus, _branch >::getOriginalBusIndex(), gridpack::hash_map::GlobalIndexHashMap::getValues(), gridpack::network::BaseNetwork< _bus, _branch >::setGlobalBranchIndex(), and gridpack::network::BaseNetwork< _bus, _branch >::setGlobalBusIndex().

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::setActiveBranch	(	int	idx,
		bool	flag
	)

Set the active flag of the branch

Parameters:

	idx	local index of branch
	flag	flag for setting bus as active or inactive

Returns:

false if no branch exists for idx

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::setActiveBus	(	int	idx,
		bool	flag
	)

Set the active flag of the bus

Parameters:

	idx	local index of bus
	flag	flag for setting bus as active or inactive

Returns:

false if no bus exists for idx

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::setGlobalBranchIndex	(	int	idx,
		int	g_idx
	)

Set the global index of the branch

Parameters:

	idx	local index of branch
	g_idx	global index to be assigned to branch

Returns:

false if no branch exists for idx

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::setGlobalBusIndex	(	int	idx,
		int	g_idx
	)

Set the global index of the bus

Parameters:

	idx	local index of bus
	g_idx	global index to be assigned to bus

Returns:

false if no bus exists for idx

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::setGlobalBusIndex1	(	int	idx,
		int	b_idx
	)

Set the global index of the bus at the "from" end of branch

Parameters:

	idx	local index of branch
	b_idx	global index of "from" bus for this branch

Returns:

false if no branch exists for idx

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::setGlobalBusIndex2	(	int	idx,
		int	b_idx
	)

Set the global index of the bus at the "to" end of branch

Parameters:

	idx	local index of branch
	b_idx	global index of "to" bus for this branch

Returns:

false if no branch exists for idx

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::setLocalBusIndex1	(	int	idx,
		int	b_idx
	)

Set the local index of the bus at the "from" end of branch

Parameters:

	idx	local index of branch
	b_idx	local index of "from" bus for this branch

Returns:

false if no branch exists for idx

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::setLocalBusIndex2	(	int	idx,
		int	b_idx
	)

Set the local index of the bus at the "to" end of branch

Parameters:

	idx	local index of branch
	b_idx	local index of "to" bus for this branch

Returns:

false if no branch exists for idx

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::setMap

(

void

)

Set up multimap data structures on each processor

References gridpack::network::BaseNetwork< _bus, _branch >::getOriginalBranchEndpoints(), gridpack::network::BaseNetwork< _bus, _branch >::getOriginalBusIndex(), gridpack::network::BaseNetwork< _bus, _branch >::numBranches(), and gridpack::network::BaseNetwork< _bus, _branch >::numBuses().

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::setOriginalBusIndex	(	int	idx,
		int	o_idx
	)

Set the original index of the bus (from configuration file)

Parameters:

	idx	local index of bus
	o_idx	original index assigned to bus

Returns:

false if no bus exists for idx

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::setOriginalBusIndex1	(	int	idx,
		int	b_idx
	)

Set the original index of the bus at the "from" end of branch

Parameters:

	idx	local index of branch
	b_idx	original index of "from" bus for this branch

Returns:

false if no branch exists for idx

template<class _bus , class _branch >

bool gridpack::network::BaseNetwork< _bus, _branch >::setOriginalBusIndex2	(	int	idx,
		int	b_idx
	)

Set the original index of the bus at the "to" end of branch

Parameters:

	idx	local index of branch
	b_idx	original index of "to" bus for this branch

Returns:

false if no branch exists for idx

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::setReferenceBus

(

int

idx

)

Designate a bus as a reference bus.

Parameters:

idx

local index of bus

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::setXCBranchBuffer	(	int	idx,
		void *	ptr
	)

Store location of externally allocated buffer within a network

Parameters:

	idx	local index of branch associated with buffer
	ptr	location of buffer

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::setXCBusBuffer	(	int	idx,
		void *	ptr
	)

Store location of externally allocated buffer within a network

Parameters:

	idx	local index of bus associated with buffer
	ptr	location of buffer

template<class _bus , class _branch >

int gridpack::network::BaseNetwork< _bus, _branch >::totalBranches

(

void

)

Return the total number of branches in the entire network

Returns:

total number of branches

References gridpack::parallel::Distributed::communicator().

template<class _bus , class _branch >

int gridpack::network::BaseNetwork< _bus, _branch >::totalBuses

(

void

)

Return the total number of buses in the entire network

Returns:

total number of buses

References gridpack::parallel::Distributed::communicator().

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::updateBranches

(

void

)

Update the branch ghost values. This is a collective operation across all processors.

References gridpack::parallel::Distributed::communicator(), gridpack::network::BaseNetwork< _bus, _branch >::getActiveBranch(), and gridpack::network::BaseNetwork< _bus, _branch >::numBranches().

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::updateBuses

(

void

)

Update the bus ghost values. This is a collective operation across all processors.

References gridpack::parallel::Distributed::communicator(), gridpack::network::BaseNetwork< _bus, _branch >::getActiveBus(), and gridpack::network::BaseNetwork< _bus, _branch >::numBuses().

template<class _bus , class _branch >

void gridpack::network::BaseNetwork< _bus, _branch >::writeGraph

(

const std::string &

outname

)

Print out network topology to a file using Matlab format

Parameters:

outname

name of file containing network topology

References gridpack::parallel::Distributed::communicator(), gridpack::parallel::DistributedInterface::processor_rank(), and gridpack::parallel::DistributedInterface::processor_size().

---

The documentation for this class was generated from the following file:

• base_network.hpp
